S-Detector™
Boost your diagnostic confidence
More patients can be served comfortably and effectively with the Samsung S-Detector™. A flexible design and range of sizes deliver efficient and effective performance, along with easy, reliable operation. Easily upgrade to a superior DR system with AED (Auto Exposure Detection).AED recognizes exposure timing automatically without a cable connection between the X-ray generator and detector, allowing easy and simple installation.
Directly deposited CsI scintillator
S4343-W, S4335-W & S3025-W detectors adopt directly deposited CsI scintillators. This method improves image quality with less signal diffusion compared to conventional detectors.
Clear images with high DQE
The S-Detector™ with direct deposition show improvement in terms of DQE (Detective Quantum Efficiency) value. The efficiency of radiation is improved, ensuring high image quality without increasing dose, as compared to previous indirect type detectors.
Varying sizes for optimal use
Different S-Detector™ sizes are available (S4335-W, S4343-W*), which enables personalized care for pediatric to bariatric patients and ensures optimized images for various body areas, such as hands, chests or spines.

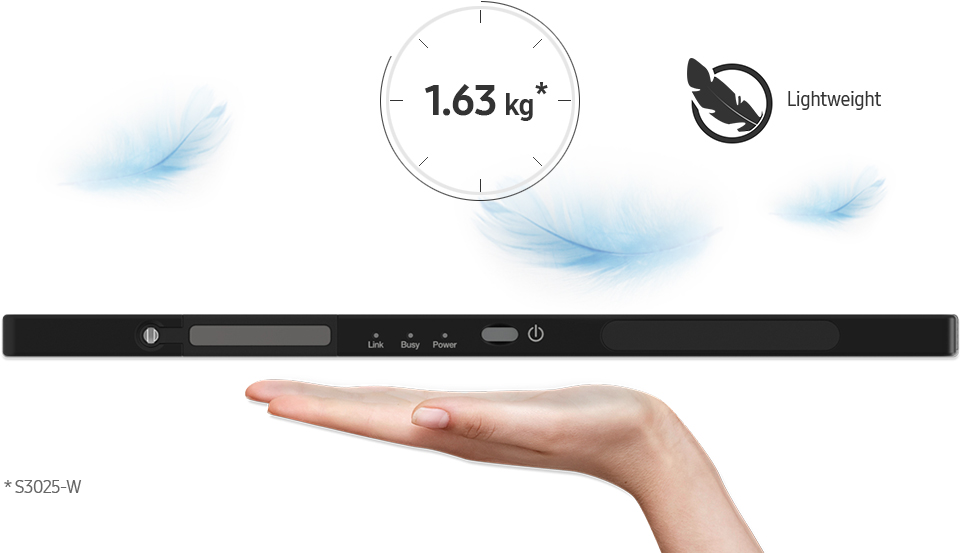

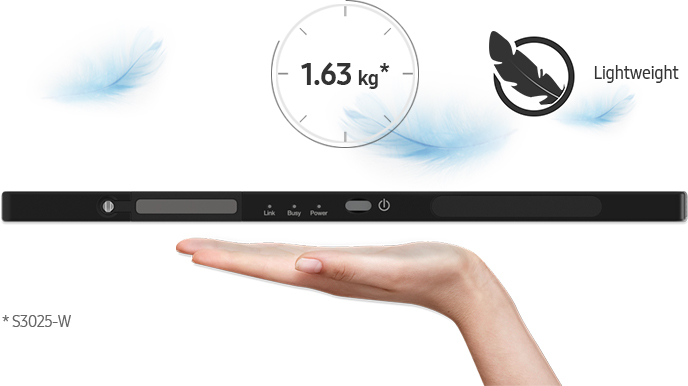

Easy usage with light weight
A lightweight wireless detector gives users the freedom to position the unit quickly and easily so a greater number of patients can be served. A patented portable grid can be conveniently and comfortably placed under patients.
Continuous use with water & dust resistant design
S3025-W* is water-resistant to protect it from liquid sprays and dust in all directions. The product is durable against unexpected contact with substances such as blood, body fluids and liquid and powdered medication, and can be easily cleaned.
Product configuration
| Detector | S3025-AW |
|---|---|
| Type(Material) | Amorphous silicon TFT / Cesium iodide scintillator (CsI) |
| Dimension (WxDxH) | 350mm x 287mm x 15mm |
| Effective areay | 254mm x 317mm |
| Pixel pitch (um) | 124μm |
| AD convension (bit) | 16bits |
| DQE | 75% (0.1 lp/mm) |
| Battery charging time | Typ. 2 hrs. (AD-DC adapter)Typ. 2 hrs.(GM85 In-bin) |
| Battery life | 300 images for 8 hrs. (96s cycle) |
| Weight | 2.1 kg |
| AED | O |
| Water/Dust resistance | O |
Product configuration
| Detector | S3025-AWM |
|---|---|
| Type(Material) | Amorphous silicon TFT / Cesium iodide scintillator (CsI) |
| Dimension (WxDxH) | 350mm x 287mm x 15mm |
| Effective areay | 254mm x 317mm |
| Pixel pitch (um) | 124μm |
| AD convension (bit) | 16bits |
| DQE | 60% (0.1 lp/mm) |
| Battery charging time | Typ. 2 hrs. (AD-DC adapter)Typ. 2 hrs.(GM85 In-bin) |
| Battery life | 300 images for 8 hrs. (96s cycle) |
| Weight | 1.95 kg |
| AED | O |
| Water/Dust resistance | O |
Product configuration
| Detector | S4335-W |
|---|---|
| Type(Material) | Amorphous silicon TFT / Cesium iodide scintillator (CsI) |
| Dimension (WxDxH) | 384mm x 460mm x 15mm |
| Effective areay | 345mm x 426 mm (W x D) |
| Pixel pitch (um) | 140μm |
| AD convension (bit) | 14 bits |
| DQE | 73% / 79% (0.1 lp/mm) |
| Battery charging time | 6 hrs (tethered), 3 hrs (battery charger) |
| Battery life | 160 images for 4 hrs |
| Weight | 3.1 kg |
| AED | O |
| Water/Dust resistance | X |
Product configuration
| Detector | S4343-W |
|---|---|
| Type(Material) | Amorphous silicon TFT / Cesium iodide scintillator (CsI) |
| Dimension (WxDxH) | 460mm x 460mm x 15mm |
| Effective areay | 425.04mm x 425.6mm |
| Pixel pitch (um) | 140μm |
| AD convension (bit) | 16 bits |
| DQE | 80% (0.1 lp/mm) |
| Battery charging time | 6 hrs (tethered), 3 hrs (battery charger) |
| Battery life | 160 images for 4 hrs |
| Weight | 3.7 kg |
| AED | O |
| Water/Dust resistance | X |
